Speaker Amplifier instructions.

A legacy project developed November 2012 by Kelvin Barnsdale ZL3KB

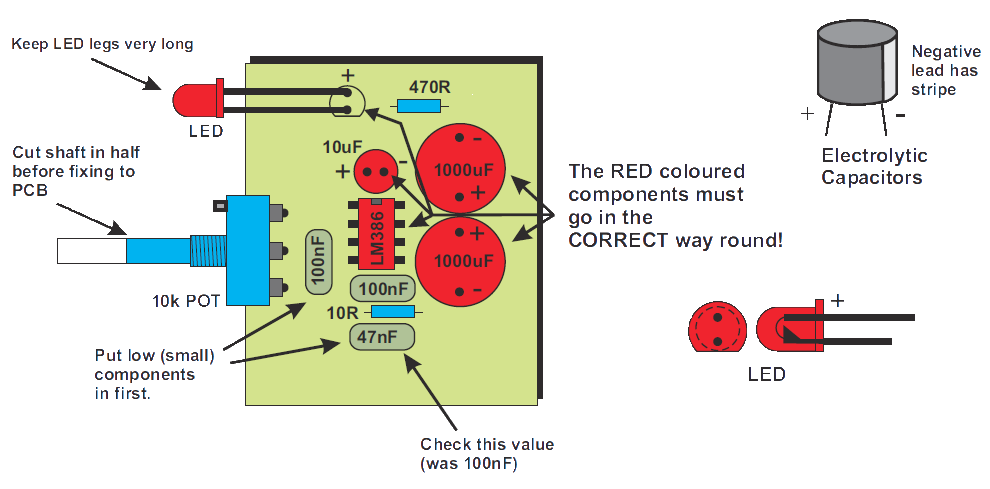

Step 1: Fitting the components to the Printed Circuit Board.

Note - get and fit ONE component at a time!
Fit low component first, resistors, LM386.

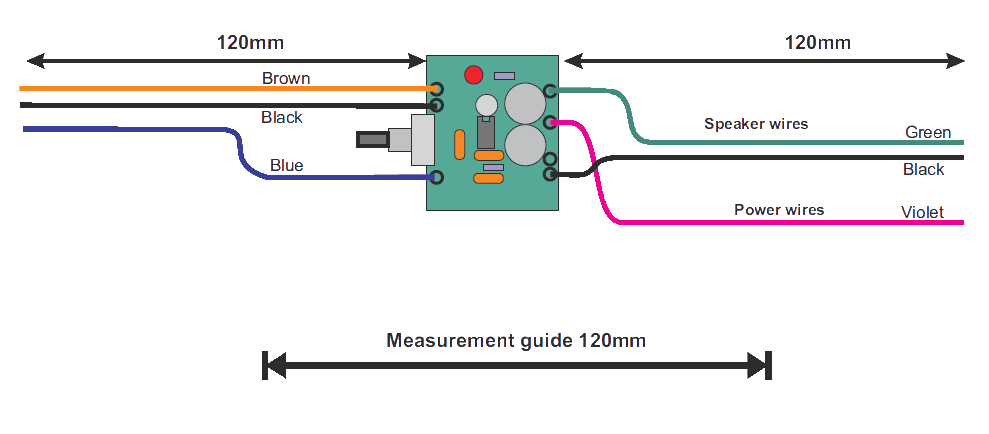

Step 2: Adding wires to the Printed Circuit Board.

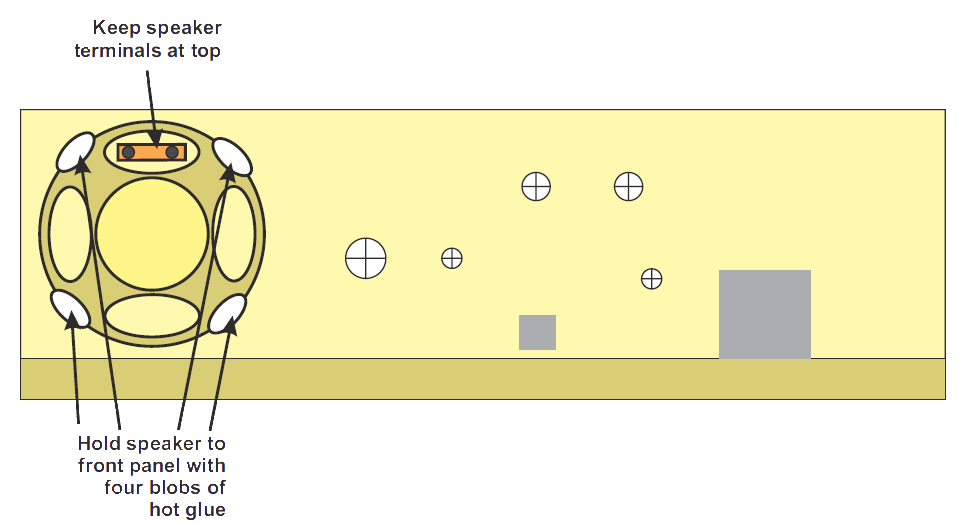

Step 3: Fit speaker behind front panel.

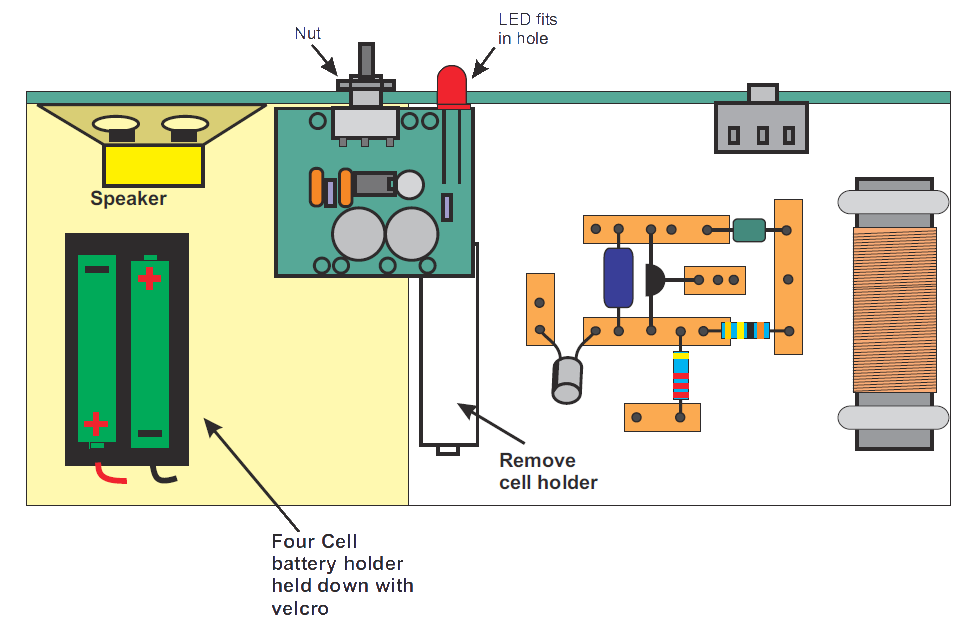

Step 4: Fit PCB and battery holder.

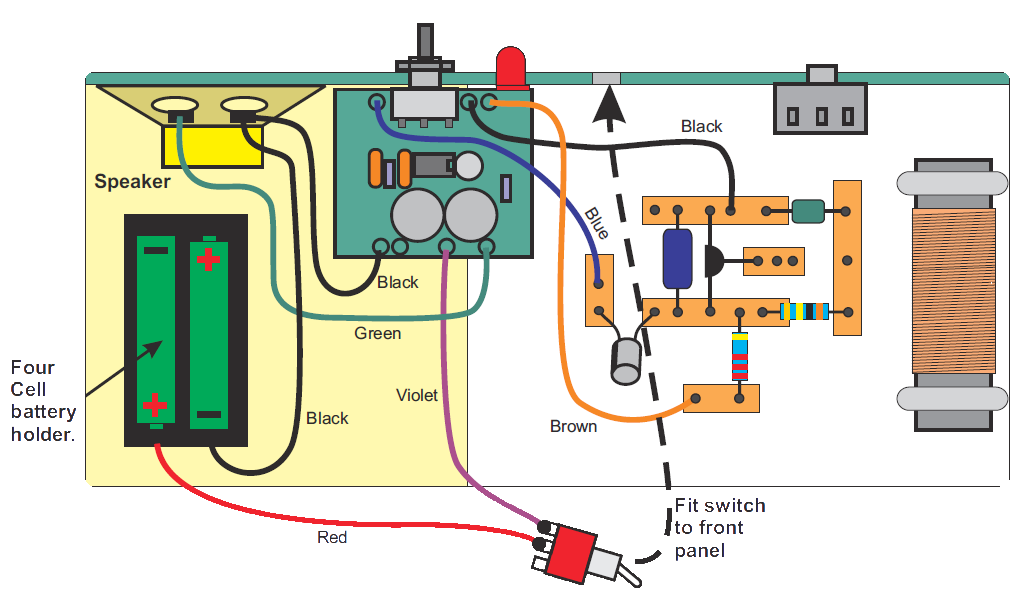

Step 5: Final wiring.
